Description

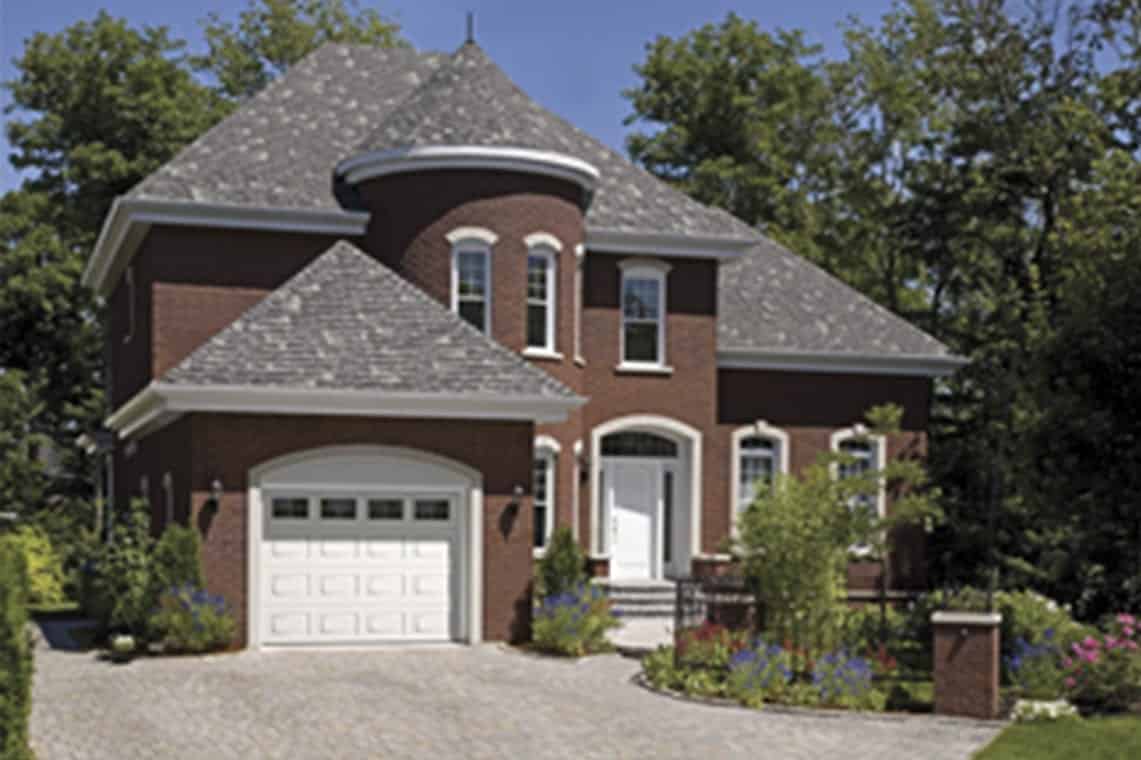

H-Tech, timeless style

The H-Tech door is lightweight, extremely energy efficient and lends itself to the style of most home. The timeless design of this rustproof aluminum garage door boasts a rustic textured wood grain, and is available in 6 colours.

  • It is a classic style that is sure to enhance the look of any home for years to come.
  • 1 3/4″-thick aluminum door.
  • Polyurethane-injected insulation provides R-16 thermal resistance.
  • Baked on polyester paint coating.

Download the brochure

Colours & Models

Colourss

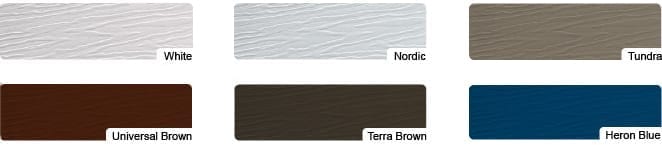

The H-Tech garage door comes in 6 door colours.

The accuracy of colours on the website may vary depending on your screen settings. To see the true colours, please contact your local Garaga dealer for a sample.

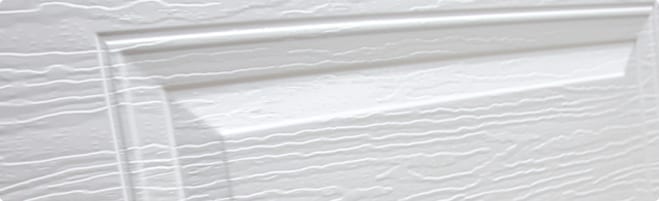

Rustic Woodgrain Finish

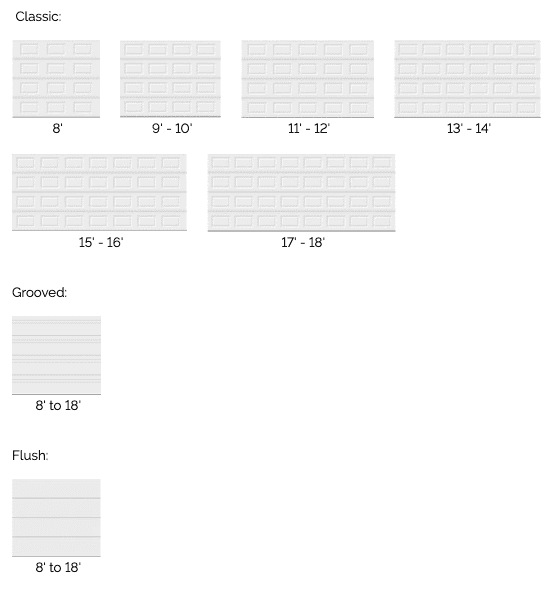

Models

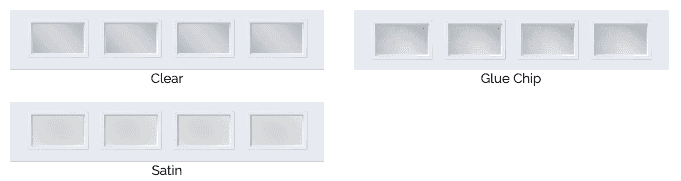

Windows

Decorative Windows (21 X 13 in)

Add a touch of elegance to your garage door by selecting decorative windows that complement your architecture.

Garaga windows are strong and weathertight because their sealed thermo panes are inserted in one-piece synthetic resin frames. Garaga windows come with a 10-year warranty against discolouration and the formation of condensation between panes.

Standard Unit

Colour of frame: White, Claystone, Desert Sand, Dark Sand, Brown, Black, Evergreen and Charcoal.

Orion

Colour of frame: White, Claystone, Desert Sand, Dark Sand, Brown, Black, Evergreen and Charcoal.

Colour of grids: White, Claystone, Desert Sand, Dark Sand, Brown and Black.

Colour of frame: White, Claystone, Desert Sand, Dark Sand, Brown, Black, Evergreen and Charcoal.

Colour of came: Pewter

Plastic Inserts

Colour of frame: White, Claystone, Desert Sand, Dark Sand, Brown, Black, Evergreen and Charcoal.

*Charcoal Plastic inserts is only available with Stockton.

Design – Printing Process

Colour of frame: White, Claystone, Desert Sand, Dark Sand, Brown, Black, Evergreen and Charcoal.

Technical Specifications

Components

Components of a system that is 100% Garaga

PANELS

1. 0.60 mm aluminum
2. Pressure-Injected polyurethane foam (R-16; thickness 1 3/4″)
3. Wood End block (Kiln-dried pine)
4. Flexible Top Weatherstripping (optional)

HARDWARE

4. 14-gauge galvanized steel tracks, bearing the Garaga seal
5. Reinforced Horizontal Track (on double door only)
6. Welded anchoring plates holding the door firmly to the wall

ACCESSORIES

7. One piece injected windows frame made of polypropylene; windows are thermopane
8. LiftMaster; smooth, quiet & reliable garage door openers

Sizes

Widths* : 8′ to 18′ (in 1″ increments)
Heights* : 6′ 6″ to 8′ (in 1″ increments)

*See your garage door dealer for more details on oversized doors available.

Warranty

Door Sections : Limited lifetime
Windows : 10 years
Dura+ Hardware: 2 years
Weatherstripping : 1 year



Download the Installation Guide

Download the Maintenance and Warranty Guide
